Cooling capacity from 15 kW to 95 kW

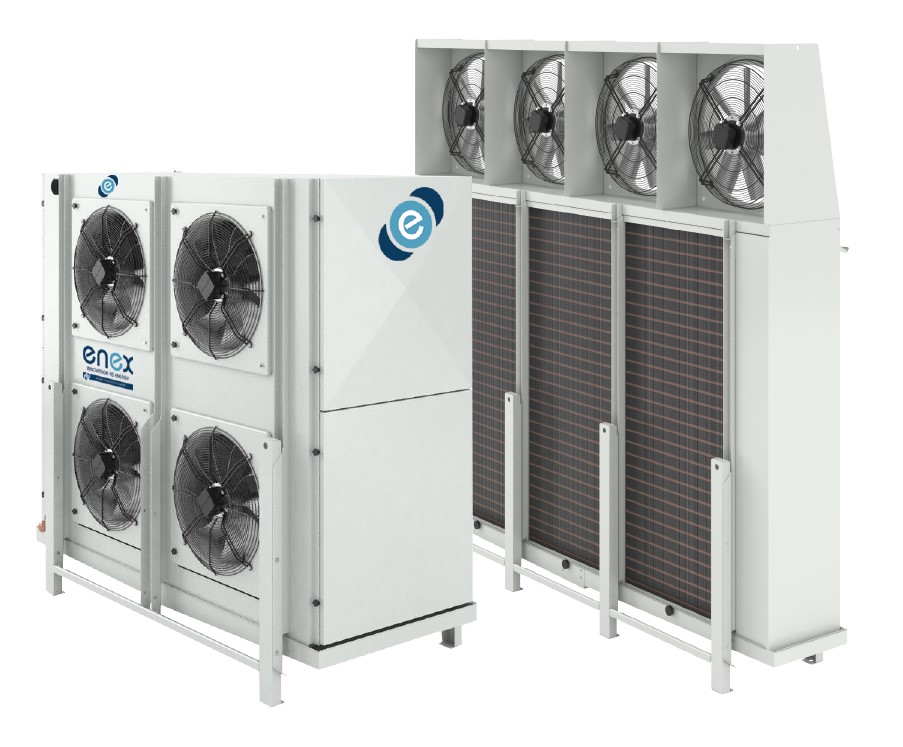

ENEX’s CO2 and brine blast freezer units are designed for fast cooling and freezing applications that require a uniform air distribution in the cold room and are compatible with highly sustainable R744 refrigerant. Engineered for a fast and homogeneous process that causes the formation of small ice crystals, which allows the food cells to retain their organolectic properties.
Features
Finned coil: Built with grooved copper tubes 5/8” Ø, and corrugated aluminium fins, manufactured according to CUPROCLIMA® specifications
Fans: Equipped as standard with AC fan motors.
Axial motors (380-480V III 50Hz)
Compliant with ErP Directive. Ø 500, 630 mm
Casing: Galvanised steel painted with epoxy-polyester, and then baked and cured at 180ºC creates high protection against corrosion even in extreme environmental conditions. In addition, this casing complies with the most stringent food hygiene standards
Design pressure: PS=60bar PT=86bar
